Codian Robotics shows again that “the leading innovator of Pick & Place robots” is not just a slogan. We have extend our portfolio of rotation axis.
Depending on the robot, application and desired performance a rotation axis can be selected. Varying from 7Nm axis and up to 24Nm. Or a Hygienic Design rotation axis available in two options: 7Nm for fast and light applications and 19Nm when more payload is required.

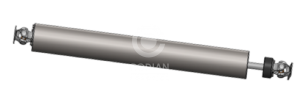

R100
Performance/Material
Maximum Torque = 7 Nm
Classification = IP65
Applicable for:
D2-500-S020 and D2-800-S020
D4-500-S010 and D4-500-S010 Demo
D4-650-S020 up to D4-1300-S020
D5-650-S020 up to D5-1300-S020

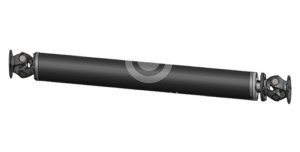

R200
Performance/Material
Maximum Torque = 19 Nm
Classification = IP65
Applicable for:
D4-650 up to 1600
TD4-650 up to 1300

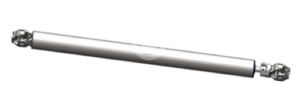

R300
Performance/Material
Maximum Torque = 24 Nm
Classification = IP65
Applicable for:
D4-1100-S040 up to D4-1600-S040
D4-1300-S050 up to D4-1600-S050
D5-1100-S040 up to D5-1600-S040
D5-1300-S050 up to D5-1600-S050

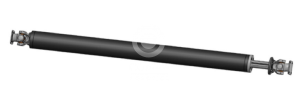

R700
Performance/Material
Maximum Torque = 65 Nm
Classification = IP65
Applicable for:
D4-1100 up to 1600
TD4-1100 up to 1600

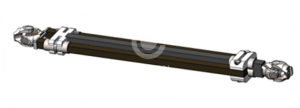

RH090
Performance/Material
Maximum Torque = 7 Nm
Classification = IP69K
Applicable for:
D2-500-S020LW and D2-800-S020LW
D4-500-S010LW
D4-650-S020LW up to D4-1300-S020LW
D4-650-HD021 up to D4-1300-HD021

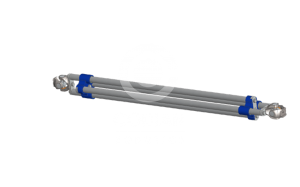

RH100
Performance/Material
Maximum Torque = 7 Nm
Classification = IP69K
Applicable for:
D2-500-S020LW and D2-800-S020LW
D4-500-S010LW
D4-650-S020LW up to D4-1300-S020LW
D4-650-HD021 up to D4-1300-HD021
D4-650-OS021 up to D4-1300-OS021
RH200
Performance/Material
Maximum Torque = 19 Nm
Classification = IP69K
Applicable for:
D4-1100-S020LW up to D4-1300-S020LW
D4-1100-HD041 up to D4-1300-HD041
If you have any questions about our rotation axes, please contact our sales department at sales@codian-robotics.com. We will be happy to help you select the best possible solution for your application.
